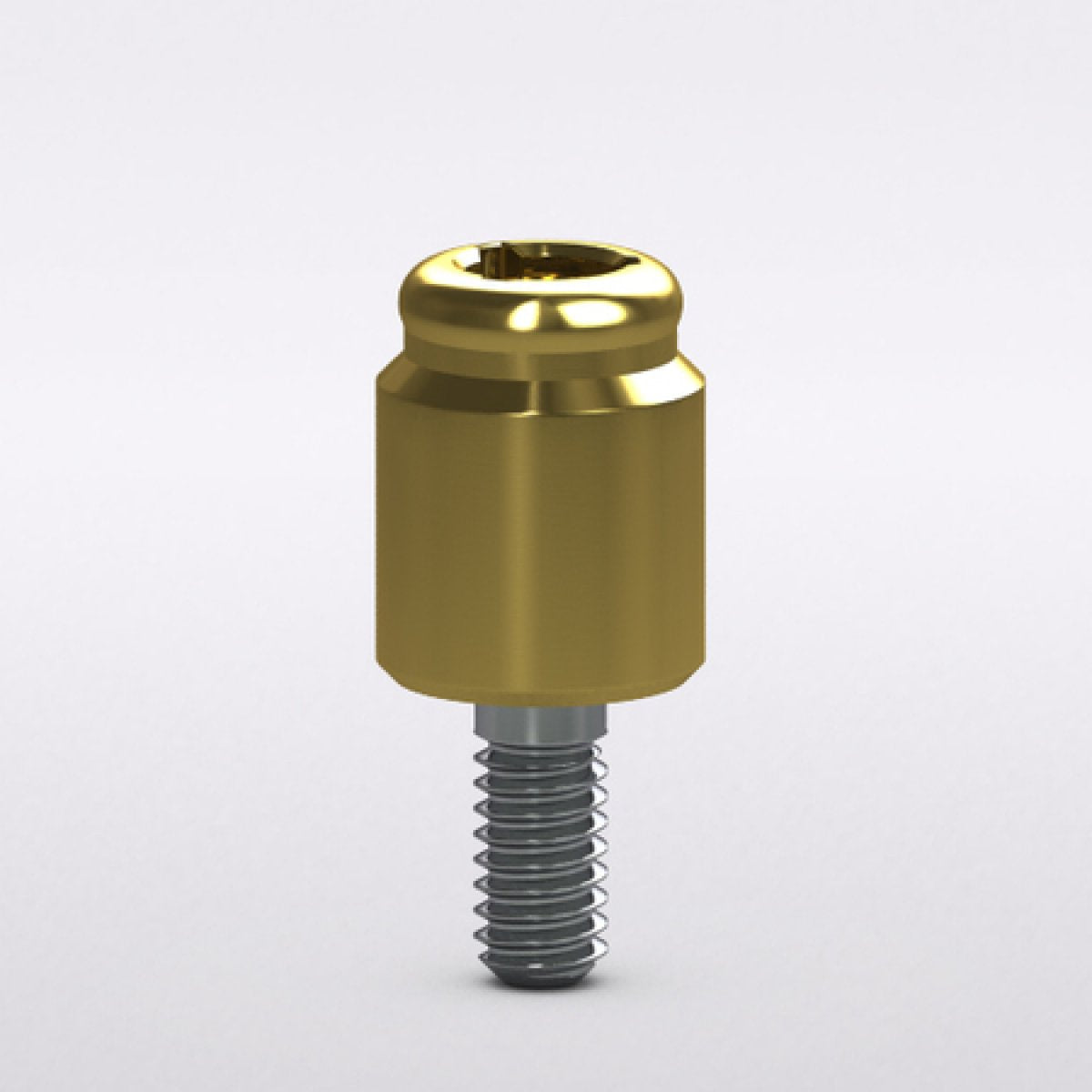

Locator abutment, Ø 4.5, GH 5.0

Locator implant anchors are designed for use with overdentures or partial dentures that are fully or partially retained by dental implants in the mandible or maxilla. Order the abutment height according to the height of the gingival tissue. The abutment will protrude 1.8 mm from the tissue to allow a proper fit of the Locator male. Order a Locator male set for each Locator abutment (sold in packs of 2 or 10). Can also be used with tissue level implants. Titanium alloy. The male set contains 3 different retention inserts. The retention inserts (clear, pink and blue) are used for restorations on implants with up to 10° divergence (20° between implants). The extended range of retention inserts (green and red) allows divergences between 10° and 20° (40° between implants); these can be purchased separately.

Properties:
PF Diameter: 4.5
Gingiva Height [mm]: 5.0
Catalog Material: Titanium Alloy
Connection Type: Internal
